Acumatica has robust API integration platform including REST API & ODATA. The following chart provides details:

ODATA – GI Based

Screen ID: SM208000
Generic Inquiry allows creating data views/queries through forms within the instance, which can then be exposed to API. More details on the setup can be found here.

Example Use-Case: Complex GI data i.e., complex query to retrieve the data that should be exposed via API & also exported as Excel or viewed on the ERP

ODATA DAC Based

DAC based ODATA calls allows to retrieve data from the DACs and also retrieved related data.

Example call: {{instance}}/t/<TenantName>/api/odata/dac

Example Use-Case: Integrating with POWER_BI reports or new  reporting system for financial analysis

More details on this and filtering capacities for ODATA can be found on the help article

Retrieving Removed Records

In addition to retrieving existing records, Acumatica also allows keeping track of deleted ones. This helps ensure integrating systems are up to date. The article provides more details on how to retrieve deleted records.

Contract-Based REST API

Using REST API, we will be able to retrieve, create and update records in the ERP and also execute actions on the screens through the API. In addition to this, files and images can be attached to records to through API. To achieve this, Acumatica has  pre-built default endpoints and also allows extending/adding to the default endpoint, any custom fields or new entities. Lastly, the data can be filtered, retrieved in batches or even a single record can be pulled.

Quick Example:

Retrieve all records: {{instance}}/entity/Default/24.200.001/SalesOrder

Retrieve one record: {{instance}}/entity/Default/24.200.001/SalesOrder/a6295b33-c7f6-e811-b817-00155d408001

Here the first calls retrives all the sales order in the system and the second one retrieves an single Sales Order with a GUID  – a6295b33-c7f6-e811-b817-00155d408001

View all available endpoints

The pre-defined endpoints can be found on the Web Services Endpoint – SM2070PL Screen or it can retrieved through API. This article should be of help.

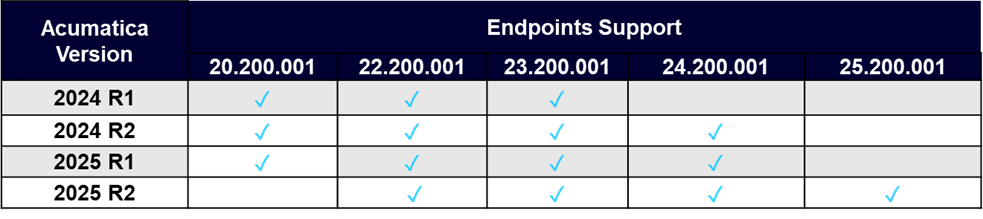

Rest API Versions

Filtering & Pagination

Why we need it: To avoid timeout errors & increase performance
Major filtering technique:

• $expand
• $filter
• $top
• $skip

Example: $filter= ‘LastModifiedDateTime’ gt ‘2024-02-18T23%3A59%3A59.999%2B04%3A00’

This allows users to retrieve data since the last sync. More details

Executing Actions through API

Actions such as “Release” in Bills and Adjustments can be executed through API. This should be post call. More details

Retrieving data from Report
Data from reports can be retrieved through API. More details

Example:
POST {{instance}}/entity/Report/0001/CashAccountSummary

Request Body:

{

“CompanyBranch”: {“value”: “SOFT”},

“IncludeNonClearedTransactions”: {“value”: true}

}

Extend Default endpoint and create new endpoint

Screen: SM207000

In case custom fields and new screens are added to the instance, the details specific to these can be added to the default endpoint. Also, details which are not present in the default endpoint can be added to the extended endpoints. More details and how to create and utilize these custom extended endpoints can be found here

Make custom endpoint shareable / Add to a customization package

Screen: SM204505

Makes the REST API sharable through customization projects. More details

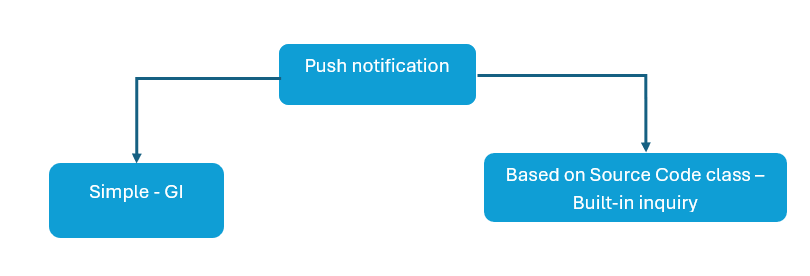

Push Notification

Screen ID: Push Notifications (SM302000)

Push notifications allow external applications to track data changes in Acumatica

Push notifications allow external applications

• To send notifications about changes in particular data.
• To implement real-time synchronization of changes in the data in Acumatica ERP with the data in an external system.

To configure Acumatica ERP to send push notifications for a query that is defined as a class in the source code of the application—that is, for a built-in definition of the query. More details

Webhooks

Screen: Webhooks (SM304000)

A webhook helps you to integrate external applications that provide data in their own format and need to submit this data to Acumatica ERP.  The data can be mapped to relevant records within Acumatica. More details

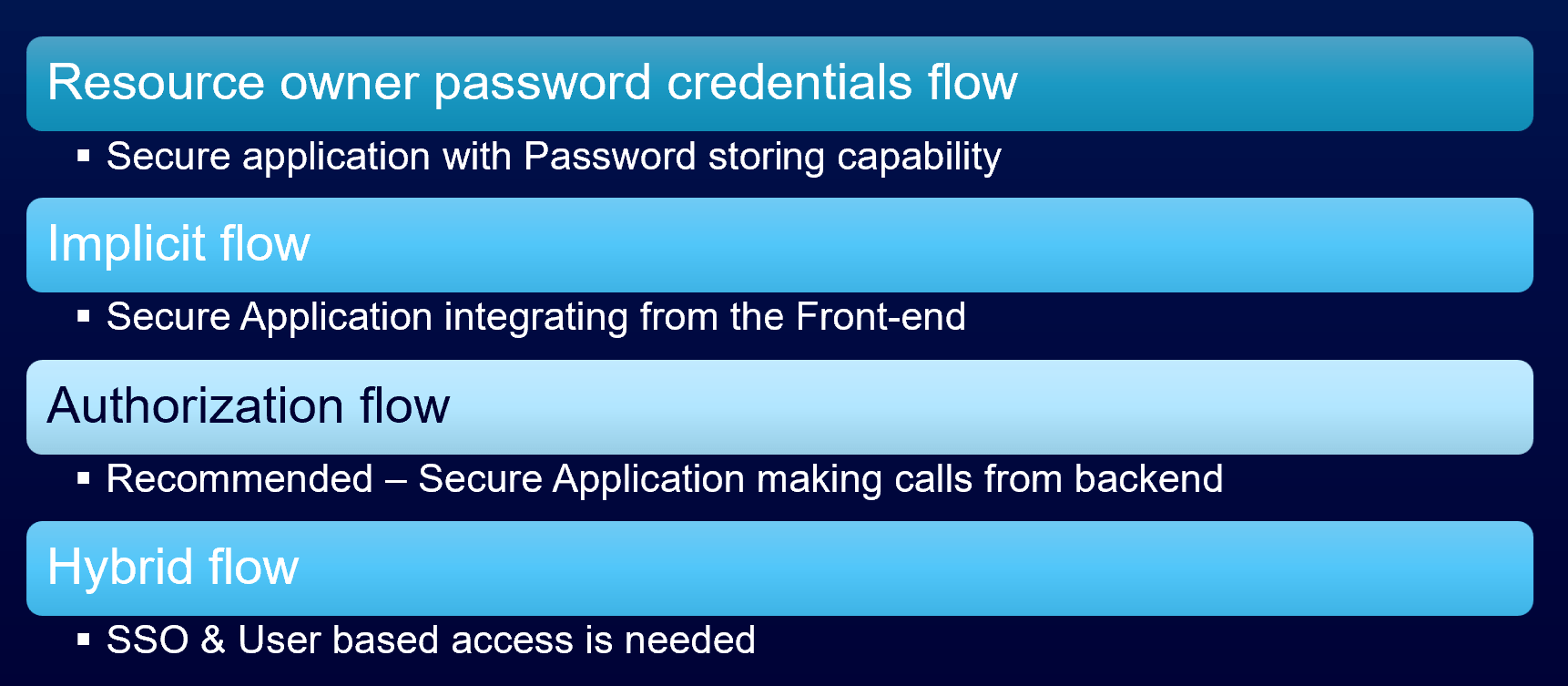

Authentication & Authorization

Using OAUTH & OPENID framework for login to Acumatica. It is best to design the integration using this framework to avoid technical debt and ensure security. The are multiple authorization flows to be used and when to use is detailed below. More information on configuration and usage can be found here

Screen used: SM303010

Changing business date & Branch when using API

By using PX-CbApiBusinessDate & PX-CbApiBranch Header values, we can change the current business date and the branch the API is using. This is needed when the current date and branch is influences the functionality. This allows set the branch permissions and date eg., bill generation date. More details

Localized data retrieval

As long as a locale language is defined in the instance, details can be retrieved in another locale through API. More details

Example call: {{instance}}/entity/Default/24.200.001/StockItem?$expand=Translations

User permissions :

Setting such as Maximum Number of Web Services API Users, Maximum Number of Web Services API Requests per Minute & licensing restrictions can be accessed/ reviewed through the instance.

Screen ID: SM604000

More details

Further reading:

Training: I – courses for web services
Help articles with Examples
